Industrial Electric Motors and Generators — Re-Imagined
The TruVolt™ MultiMotor is an integrated, high-performance motor system that combines multiple advanced features in a standard frame design. Built around patented Ironless Axial Flux Permanent Magnet Synchronous Motor (PMSM) technology, this motor excels in efficiency, precision, and controllability for variable-speed and servo applications.
Designed to meet the needs of modern industrial and commercial systems, the motor offers seamless integration and enhanced ease of use. The built-in Variable Frequency Drive (VFD), Programmable Logic Controller (PLC), and advanced monitoring hardware create an all-in-one solution that eliminates the need for external components. In addition the motor can function over a wide input voltage range and wide power range, allowing one motor to replace many different standard motor configurations.

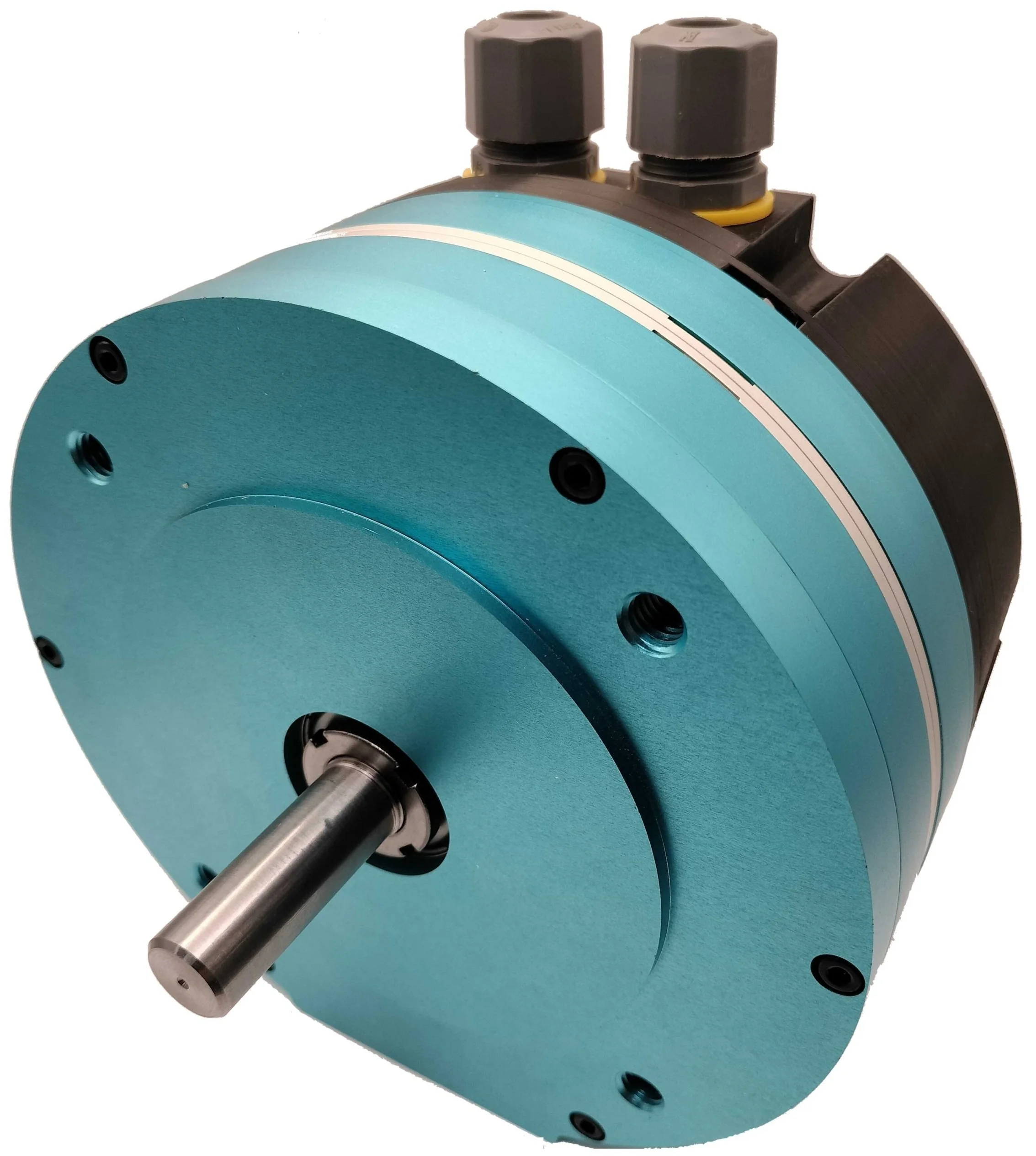

TruVolt MultiMotor Overview
Wide input voltage range
Single, split, or 3 phase capable.
Standard NEMA frame Face or Foot mount options
High Power Factor
Integrated VFD/Servo Control
User accessable PLC for simple user programming
Patented High Efficiency Stator
Lightweight (under 6kg*)
Patented Design Excellence
Effective thermal dissipation even with axial flux design.
Zero Cogging Torque
Servo or continuous run capability
Industry-leading >91% efficiency at rated load exceeding IE4 standards
Smart A.I. Integration
Real-time performance monitoring
Web-based dashboard control and PLC programming interface.
Strategic load-shifting capabilities
Peak consumption management
Built-in VFD/Servo controller with user accessible PLC inputs and outputs
Applications
Automation systems
Conveyor Systems
Fan and Pump motors
Distributed power generation
Direct drive turbines
Off-grid power production
Industrial equipment
Technical Information
| Definition | Data | Unit | Remarks |
|---|---|---|---|
| Product Code | MultiMotor-56-2HP+ | 0.5 to 4 HP | 2HP nominal |
| Rated Voltage (AC) | <360 V | ±5% | (IEC 600341) |
| Rated Voltage (DC) | <420 V | - | - |
| Rated Input Frequency | <400 Hz | - | - |
| Efficiency Class | >IE3 | - | IE4 for most loads |
| Rated Power | 1.5 (2) | kW (HP) | - |
| Rated Speed | 3600 | RPM | - |
| Peak Power | 3 | kW | <120sec |
| Sound Pressure Level | <40 | dB(A) | - |
| Degree of Protection | IP54 | - | - |
“Our progress in developing the TruVolt™ MultiMotor represents a breakthrough in electric motor technology. We've combined efficiency, intelligence, and sustainability into one seamless solution that will redefine the future of industrial systems.”
— Dr. Elijah Jensen (Founder and CEO)
Now accepting custom motor and generator orders
Our standard NEMA56 motor is available to order, however other frames and sizes are available upon request.
For large orders we prefer to work with our customer to design the motor that is right for you!
If you have a custom request or don’t see a size listed, please reach out to our team and schedule a meeting to discuss your needs. We always do our best to accommodate special mechanical requirements and situations.
